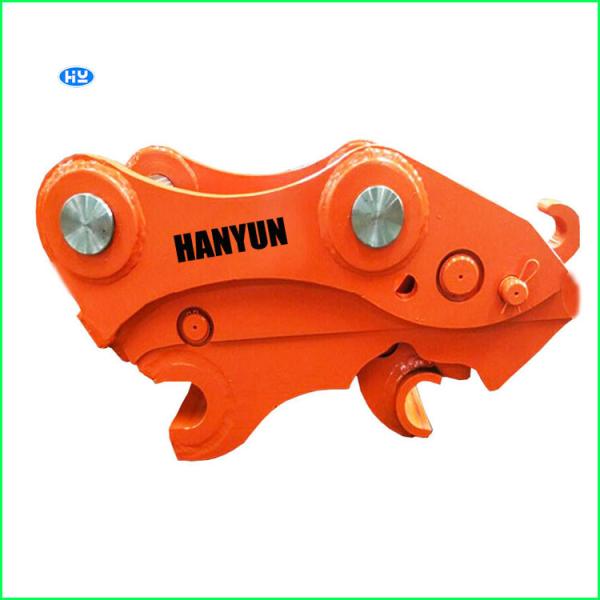

Excavator Quick Hitches Quick Couplers for Attachments Fast Change
(1) About Excavator Quick Hitches Quick Couplers for Attachments
Fast Change
Excavator quick hitches are installed on excavators as one
auxiliary tool to help rapid change of bucket,
hydraulic breaker, compactor, grapples and other attachments, its
features are as below
* Fast change speed for excavator attachments;
* Easy installtion;
* Wide application;
* Different types for selection;
* High strength raw materials
(2) Technical Parameters on Excavator Quick Hitches Quick Couplers
| Item | HYKJ-0 | HYKJ-02 | HYKJ-04 | HYKJ-06 |
| Length (mm) | 306-475 | 534-545 | 600 | 765 |
| Height (mm) | 230-268 | 307 | 310 | 388 |
| Width (mm) | 175-242 | 258-263 | 270-280 | 353-436 |
| Centre Distance between two shafts (mm) | 86-200 | 230-270 | 290-360 | 380-420 |
| Equipping distance (mm) | 90-140 | 208-318 | 340-450 | 340-486 |
| Pin diameter (mm) | 25-40 | 45-50 | 50 | 50-70 |
| Weight (kgs) | 60 | 100 | 110 | 250 |
| Working pressure (kgf/cm2) | 40-380 | 40-380 | 40-380 | 40-380 |
| Carrier (t) | <4 | 4-6 | 7-8 | 12-18
|
1. We could customize the size of Excavator Quick Hitches Quick
Couplers to suit different needs from different customers
2. When you send one inquiry, please send me one excavator model
for reference
(3) About Hanyun
Hanyun is one leading manufacturer of hydraulic breakers for
different excavators with various models. It was
founded in Zhengzhou city, China in 2012. For about 10 years, it
has kept being dedicated in the field of design,
develop and fabricate different hydraulic breaker hammers and
related spare parts.
Main products of Hanyun as below:
1. Hydraulic breaker hammers;
2. Breaker chisels ;
3. Excavator compactors;
4. Hydraulic pulverizer;
5. Excavator quick hitches;
6. Excavator breaker attachment;
7. Excavator grapples.
(4) FAQ
1. Q: Are you a direct factory?
A: Yes, we are one big factory in China. And comprehensive strength
of our company ranks top 3 in China market.
2. Q: What is your quality warranty policy?
A: For all products provided by Hanyun, 6 -12 months quality
warranty period, but quick-wearing spare parts are not included.
3. Q: Do you provide on-site installation service?
A: Yes, on-site installation service is available. And currently we
are looking for wholesale distributors worldwide. In the coming
future, our local distributors could serve you very soon in 24
hours
4. Q: Could I be your agent?
A: Yes, it is possible for you to be our agent overseas. For more
details, please contact Lisa by whatsapp: 0086-17788159708
