Complete Models Excavator Rock Concrete Breaker With Breaker
Chisels
(1) How to select one suitable excavator rock concrete breaker?
Excavator rock concrete breaker is mainly used for breaking rocks.
As selecting one suitable excavator rock
concrete breaker, we shall consider:
1. The working pressure and working flow options need to match the
hydraulic performance of the excavator,
2. The drill rod diameter and strike frequency can be selected
according to the working conditions.
For example, to crush hard rocks, you can choose a breaker with a
larger drill rod diameter
and a higher hit frequency, which will have a greater impact force,
and then use a special drill rod according to
different working conditions.
(2) Main Technical Parameters on Excavator Rock Concrete Breaker
| Model | HY180 |
| Total weight (KG) | 4950 |
| Size (L*W*H) (MM) | 2240*750*1620 |
| Driving oil pressure (KG) | 280-300 |
| Driving oil volume (MIN) | 220-270 |
| Striking frequency(BPM) | 180-200 |
| Rubber hose diameter (INCH) | 1.2 |
| Drill rod diameter(MM) | 180 |
| Drill rod weight(KG) | 300 |
| Applicable vehicle weight (T) | 42-48 |
(3) Main Products from Hanyun
Hanyun is one leading manufacturer of hydraulic hammers for
different excavators with various models.
It was founded in Zhengzhou city, China in 2012. For about 10
years,
it has kept being dedicated in the field of design, develop and
fabricate different hydraulic breaker hammers
and related spare parts.
Main products of Hanyun as below:
1. Excavator Rock Concrete Breaker;
2. Breaker chisels ;
3. Excavator compactors;
4. Hydraulic pulverizer;
5. Excavator quick hitches;
6. Excavator breaker attachment.

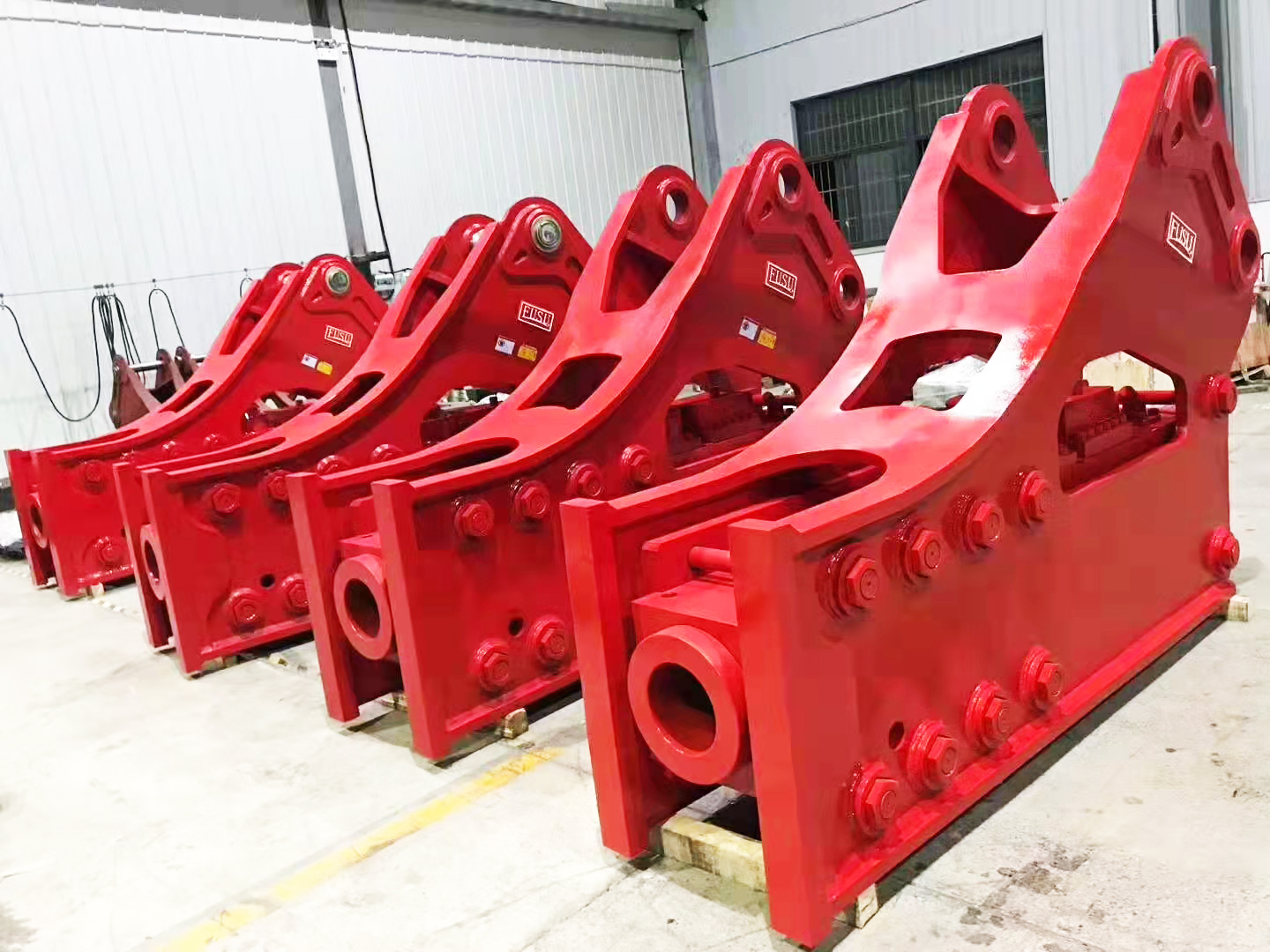

(4) Warehouse Show on Excavator Rock Concrete Breaker
(5) Hanyun Family
| Foundation Date | 2012 |
| Factory Address | Zhengzhou city, Henan, China |
| Company Type | Manufacturer + Joint-stock enterprise |
| Annual sales | About USD 30 million |
| Family members | 210 |
