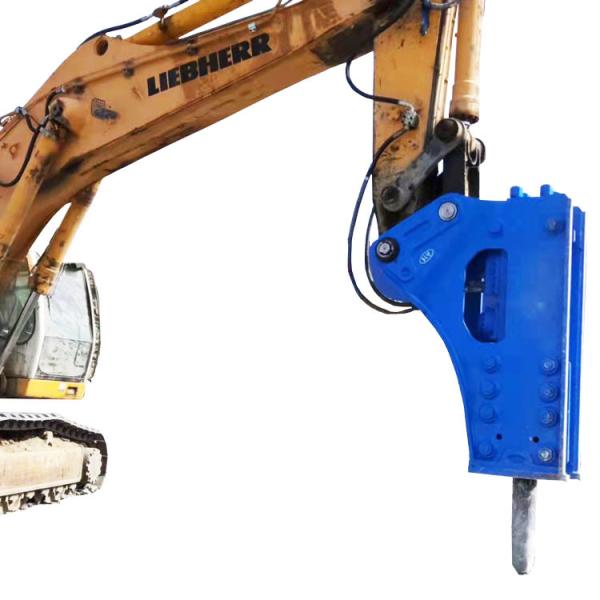

Hydraulic Jack Hammer Skid Steer Loaders Mounted Hydraulic Piling
Hammers
(1) About Hydraulic Jack Hammer Skid Steer Loaders Mounted Hydraulic Piling
Hammers
By customized hammer chisels, the hydraulic jack hammer could also
realize to strike piles as one piling machine
(2) Main Technical Parameters on hydraulic jack hammer
| Hydraulic Hammer Model | HY85 | HY120 |
| Breaker shell weight (KGS) | 400 | 500 |
| Total weight(KG) | 493 | 1374 |
| Size (MM) | 1270*370*800 | 1475*530*1000 |
| Driving oil pressure (KG/CM2) | 130-160 | 150-170 |
| Hydraulic oil flow (L/MIN) | 60-100 | 90-120 |
| Striking frequency (BPM) | 400-800 | 350-650 |
| Soft hose diameter (INCH) | 3/4 | 3/4 |
| Drill rod diameter (MM) | 85 | 120 |
| Drill rod weight (KG) | 48 | 120 |
| Applicable carrier weight (T) | 7-14 | 12-18 |
(3) About packing and transportation
1. About packing: Usually the hydraulic jack hammer is packed with
plastic film firstly, then packed them
with plywood box or plywood pallets before loading them into
container
2. About transportation: the popular transportation method is by
sea, by air, by railway and by road
(4) How about the after-sale service?
The after-sale service starts with the order immediately.
1. After order is confirmed, production of hydraulic jack hammers
will be started immediately;
2. In the production, we will monitor every steps and keep update
production details;
3. After production, test running must be done to ensure normal
working of machines in the worksite;
4. In the shipping, shipping details will be tracked and updated;
5. As the hydraulic hammer reaches the worksite, we will guide you
to install and debugging;
6. For any troubles in the working, we will help solve the problems
asap.
