Heavy Duty And Large Striking Force Hydraulic Breaker Hammers

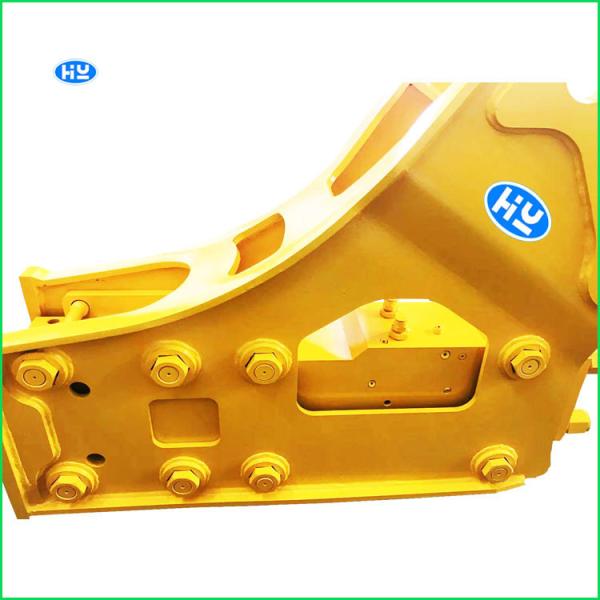

(1) About Hydraulic Breaker Hammers
Hydraulic breaker hammers uaually worked with excavators, backhoes
and skid steers, are popularly used in building
demolition projects, road breaking projects, rock or stone breaking
projects, mining projects and concrete
breaking projects, etc.
As you choose one suitable excavator rock concrete breaker, please
send models, brands and pictures of excavators,
also the working environment
(2) How to store hydraulic breaker hammers correctly?
1. The breaker chisels should be removed and the nitrogen gas
inside chamber should be removed;
2. The end of the piston should be coated with butter, and the
breaker chisles and bushing should be coated with antiseptic;
3. When lubrication is not possible, the breaker chisels must be
contracted to facilitate the piston to enter back the cylinder;
4. For the joint of the excavator and the main part, the joint cap
should be sealed to prevent dust;
5. The breaker should be placed vertically. If it is not possible,
the breaker should be placed horizontally on the square wooden bars
on flat ground;
6. If the breaker hammer is placed on the square wooden bar for
more than 6 months, please check the corrosion status of all seals
and bolts in the cylinder before operation.
(3) Main Technical Parameters on hydraulic breaker hammers
| Model | HY180 |
| Total weight (KG) | 4950 |
| Size (L*W*H) (MM) | 2240*750*1620 |
| Driving oil pressure (KG) | 280-300 |
| Driving oil volume (MIN) | 220-270 |
| Striking frequency(BPM) | 180-200 |
| Rubber hose diameter (INCH) | 1.2 |
| Drill rod diameter(MM) | 180 |
| Drill rod weight(KG) | 300 |
| Applicable vehicle weight (T) | 42-48 |
(4) Advantages of Hanyun
- Top 3 output and sales volume for hydraulic hammers and breaker chisels
in China;
- High strength alloy steel 40CrMo/42CrMo used, longer service life;
- High-end imported processing equipment like Doosan and powerful
hardware facilities realize automated production;
- Excellent heat treatment technology has superior durability.
- Large output, high quality, fast delivery;
- Complete models;
- Perfect 7-person after-sales service team;
- Strict control of raw materials purchasing and processing,
implement Ultrasonic Testing before,during and after production.
