Excavator Breaker Hydraulic Hammer Rock Breaker Hydraulic Breaking
Hammer rock breaker hammer

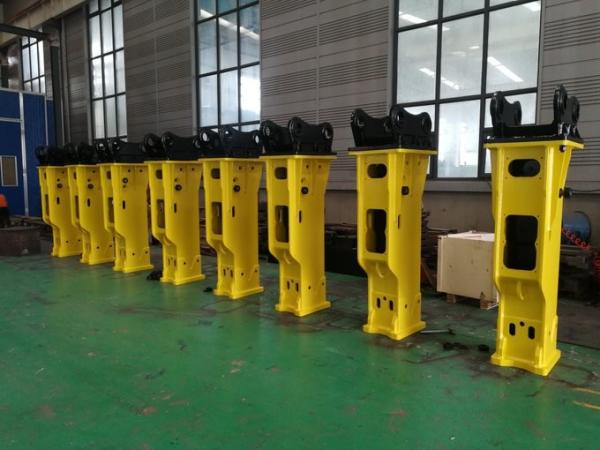

SB40 HY68 Hydraulic Concrete Stone Rock Breaker Price Hydraulic
Jack Hammer For Mini Excavators
hydraulic breaker pecker product description:
A hydraulic breaker pecker, also known as a hydraulic pecker or
hydraulic pecker attachment, is a heavy-duty hydraulic tool
designed for breaking through tough materials such as rock,
concrete, and asphalt. It is typically attached to hydraulic
machinery like excavators, backhoes, or skid steers.
A hydraulic breaker pecker operates using hydraulic power to
deliver high-impact blows. It consists of a housing, an internal
hydraulic system, a piston, and a chisel or moil point. The
hydraulic power from the host machine's hydraulic system is
directed into the pecker, which converts it into powerful impacts.
The piston rapidly moves up and down, striking the material with
force, allowing for efficient breaking and demolition.
Hydraulic breaker peckers are specifically designed to provide
precise and controlled breaking action. They are commonly used in
applications where more precise and focused breaking is required,
such as in urban areas, near structures, or when working with
delicate materials.
(1) What Hydraulic Rock Breaker Hammers Hanyun Produce?
1. Heavy duty hydraulic rock breaker hammers with breaker chisels
diameter from 140mm to 200mm, carrier 25-70t
2. Medium duty hydraulic rock breaker hammers with breaker chisels
diameter from 85mm to 135mm, carrier 10-25t
3. Light duty hydraulic rock breaker hammers with breaker chisels
diameter from 45mm to 85mm, carrier 1-10t
(2) Main technical parameters on light duty hydraulic jack hammer for
excavator
| Model | HY45 | HY53 | HY68 | HY75 | HY85 |
| Breaker shell (KGS) | 40 | 60 | 100 | 200 | 400 |
| Total weight (KG) | 102 | 140 | 264 | 345 | 493 |
| Size (MM) | 750*270*480 | 830*290*570 | 950*330*700 | 1140*370*740 | 1270*370*800 |
| Driving oil pressure (KG/CM2) | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 |
| Driving oil flow (L/MIN) | 20-40 | 25-50 | 40-70 | 50-90 | 60-100 |
| Striking(BPM) | 700-1200 | 600-1200 | 500-900 | 400-800 | 400-800 |
| Soft hose diameter (INCH) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Breaker chisel diameter (MM) | 45 | 53 | 68 | 75 | 85 |
| Breaker chisel weight (KG) | 8 | 12 | 16 | 22 | 48 |
| Applicable carrier weight (T) | 1.2-3.0 | 2.0-4.0 | 4-7 | 6-9 | 7-14 |
(3) Main technical parameters on medium duty hydraulic jack hammer
for excavator
| Model | HY100 | HY120 | HY135 | HY140 | HY155 |
| Breaker shell (KGS) | 450 | 500 | 600 | 800 | 1450 |
| Total weight (KG) | 736 | 1374 | 1663 | 1700 | 2350 |
| Size (MM) | 1340*430*970 | 1475*530*1000 | 1610*530*1280 | 1660*530*1280 | 1900*635*1350 |
| Driving oil pressure (KG/CM2) | 150-170 | 150-170 | 180-220 | 190-230 | 230-260 |
| Driving oil flow (L/MIN) | 80-110 | 90-120 | 100-150 | 120-180 | 180-240 |
| Striking(BPM) | 350-700 | 350-650 | 350-600 | 350-500 | 300-450 |
| Soft hose diameter (INCH) | 3/4 | 3/4 | 1 | 1 | 1.2 |
| Breaker chisel diameter (MM) | 100 | 120 | 135 | 140 | 155 |
| Breaker chisel weight (KG) | 50 | 120 | 125 | 130 | 190 |
| Applicable carrier weight (T) | 11-16 | 12-18 | 18-23 | 19-25 | 25-30 |
(3) Main technical parameters on heavy duty hydraulic jack hammer for
excavator
| Model | HY165 | HY175 | HY185 | HY195 |
| Breaker shell (KGS) | 1500 | 1700 | 2100 | 2300 |
| Total weight (KG) | 3350 | 4102 | 4950 | 5260 |
| Size (MM) | 2010*650*1420 | 2310*715*1630 | 2240*750*1620 | 2460*750*1670 |
| Driving oil pressure (KG/CM2) | 260-280 | 260-280 | 280-300 | 280-320 |
| Driving oil flow (L/MIN) | 190-250 | 210-290 | 220-270 | 230-280 |
| Striking(BPM) | 300-450 | 200-350 | 180-220 | 180-200 |
| Soft hose diameter (INCH) | 1.2 | 1.2 | 1.2 | 1.2 |
| Breaker chisel diameter (MM) | 165 | 175 | 185 | 195 |
| Breaker chisel weight (KG) | 220 | 260 | 300 | 340 |
| Applicable carrier weight (T) | 30-36 | 36-42 | 42-48 | 48-55 |
(4) Where are hydraulic excavator hammers used?
Hydraulic excavator hammers are used in below fields:
1. Mine mining
Mountain mining, mining, grid sieve crushing, secondary crushing
2. Metallurgy
Ladle, slag cleaning, demolition body, equipment foundation
demolition
3. Railway
Mountain excavation, tunnel excavation, road and bridge demolition,
roadbed consolidation
4. Road
Highway repair, cement pavement broken, foundation excavation
5. Municipal Garden
Concrete crushing, water, electricity and gas engineering
construction, old city reconstruction
6. Building
Demolition of old buildings, broken reinforced concrete
7. Ship
Removal of clams and rust from the hull
8. Other fields
Break ice, break frozen soil, sand vibration
(5) FAQ
1. Q: Are you a direct factory?
A: Yes, we are one big factory in China. And comprehensive strength
of our company ranks top 3 in China market.
2. Q: How do you ship the concrete structures demolition hammers?
A: Usually we will cover demolition hammers with plastic film
firstly, then load them into the container.
3. Q: When you will deliver the products after we place one order?
A: Usually 3-10 working days for the standard size. For customized
hydraulic hammers, about 15 days
4. Q: What is your payment method?
A: L/C, T/T available for the payment. Usually 30% TT as deposit,
70% blanced by TT before shipping
